ALIGNMENT WEDGE FOR CORRECTING REAR CARRIER MISALIGNMENT

Alignment wedge made from high-strength 6082 aluminium for changing the position of the rear carrier
The position of the towball indirectly determines the horizontal position of the rear carrier. Not all towballs, and especially not all towbar necks, are perfectly level. If the towball is inclined towards the vehicle, the mounted rear carrier will also automatically incline towards the vehicle. The part of the rear carrier facing away from the vehicle is raised. The result: greater ground clearance at the rear of the carrier. If the towball and neck are noticeably inclined away from the vehicle, in unfavourable cases the rear carrier may no longer even be level. The quick-release fastener compensates for this up to a certain angle of inclination of the towbar. However, if the towbar inclination is too great, the rear carrier may hang down on the side of the carrier facing away from the vehicle. The ground clearance beneath the rear carrier is reduced. This is particularly undesirable when the rear carrier is loaded and can lead to grounding or contact with the ground on rough terrain.
To adjust the position of the rear carrier, raising or lowering it despite a towbar "misalignment", Heck-Pack developed the Heck-Pack alignment wedge. Made from high-strength, lightweight aluminium and precisely milled from solid material, this wedge can be mounted between the rear carrier and the quick-release fastener. Depending on how the wedge is installed, it raises or lowers the rear section of the rear carrier, the part facing away from the vehicle. The scope of delivery includes screws of different lengths and nuts for mounting the wedge between the quick-release fastener and the rear carrier. Naturally, Heck-Pack’s alignment wedge can also be fitted to an already installed lowering device or fold-up device, or to Heck-Pack’s combined fold-up and lowering device.

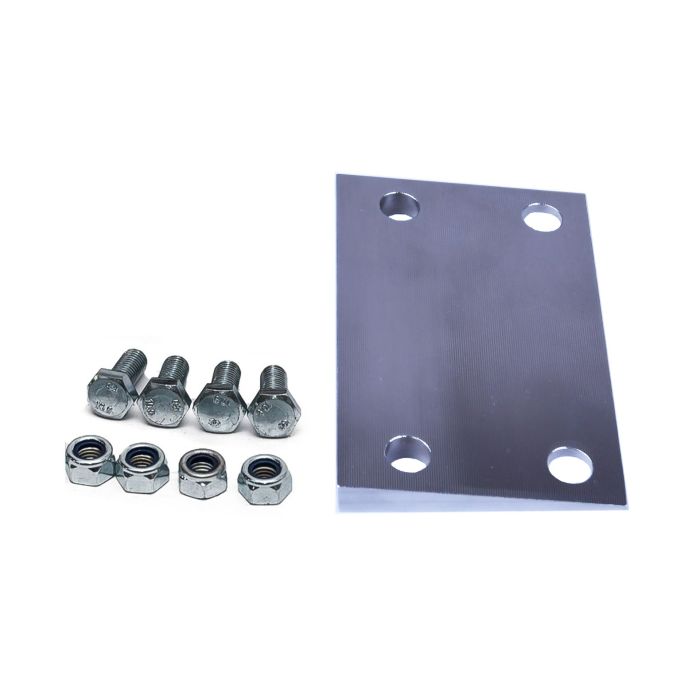

Scope of delivery: aluminium alignment wedge, 30 and 35 mm screws of property class 10.9, self-locking nuts of property class 10
