HECK-PACK OPTIMAL REAR CARRIER

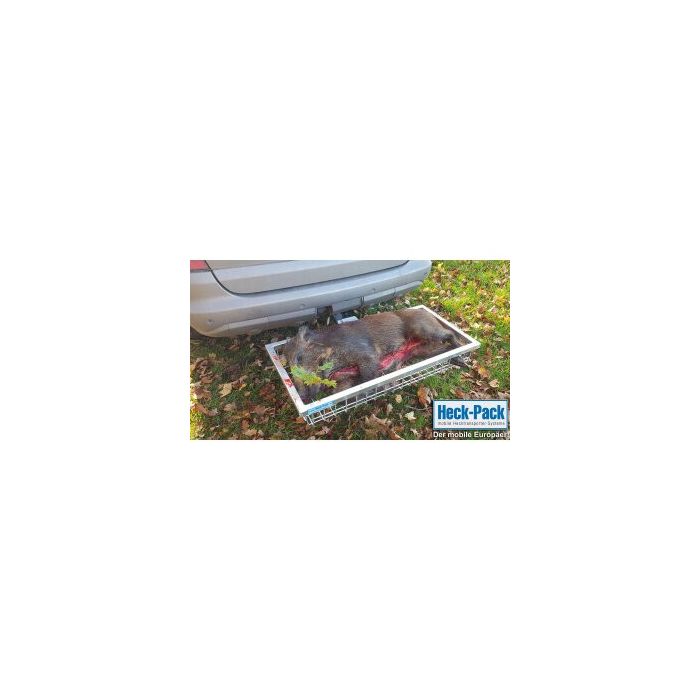

For transporting game and equipment on a towbar. Choose the basket dimensions and accessory configuration before ordering.
• Fully hot-dip galvanised to DIN EN ISO 1461 (high-quality corrosion protection, rust-free for approximately 30 years).
• Made from high-quality Thyssen Krupp or Westerwald steel.
• Frame made of square tube ST. 37, cross-section: 30/30/2 mm
• Mesh size 50x50x5 mm
• Tensile strength of the mesh weld points 350 – 700 kg
Approximate product weight / weight including a lowering or fold-up device (https://heck-pack.de/produkt/101450/), by basket size:
• 800x500x125 mm: 11 kg / 14 kg
• 1000x500x125 mm: 13 kg / 15 kg
• 1000x500x175 mm: 13 kg / 15 kg
• 1000x600x175 mm: 14 kg / 17 kg
• 1200x500x125 mm: 14 kg / 17 kg
• 1200x500x175 mm: 15 kg / 18 kg
• 1200x600x125 mm: 15 kg / 18 kg
• 1200x600x175 mm: 16 kg / 19 kg
• 900x500x125 mm: 12 kg / 15 kg
• Very sturdy welded construction (observe the permitted towbar nose load)
• Road approved (current ECE type approval) with a net payload of 89 kg; 71 kg with a lowering or fold-up device.
• The rear carrier / game carrier with the highest registered payload on the market!
• Neatly finished, no sharp edges on the tube or mesh bars
• Weld seams ground flush.
• Not manufactured in China or Pakistan. No fake “Made in Germany”! Produced in Heck-Pack’s master metalworking business in the beautiful Westerwald region!
• Suitable for all towbars thanks to a one-hand lever quick-release fastener with adapter flange
• Latest ECE road approval valid throughout the EU (no TÜV inspection necessary / no entry in the vehicle documents)
• Approved in over 60 countries. Not only within the EU! (For example, also Japan or Australia)
• As an exclusive feature, the road approval also covers use with a lowering or fold-up device and the adapters for Heck-Pack’s new “Artemis” and “Diana” game hoists!
• Installed or removed in a few seconds without tools thanks to the one-hand lever quick-release fastener
• The legally prescribed radius of 2,5 mm on the square tube for road traffic is maintained
• Bolts grade 10.9 (not 8.8), nuts grade 10
• The fastener is delivered screwed on, not enclosed loose
• With type plate and ECE road approval certificate and information material on using the rear carrier with or without additional lighting in accordance with current EU regulations
• Theft protection by means of the supplied padlock
• Incl. two free tie-down straps
• Powder coating in the RAL colours matt dark green or matt jet black is available at the customer’s request. See Heck-Pack’s “Optimal rear carriers, powder-coated” category. (/produktkategorie/hecktransporter-optimal-pulverbeschichtet/)
