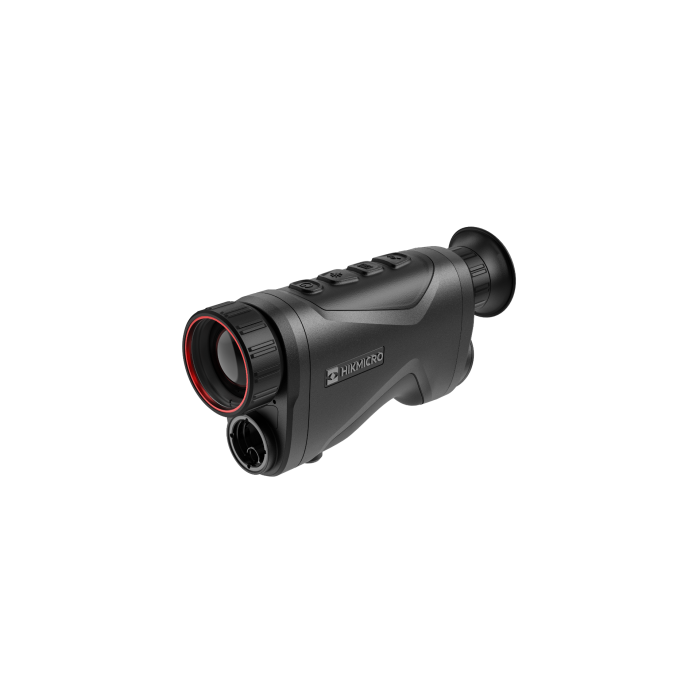

Hikmicro Condor CH35L

The HikMicro Condor CH35L is a compact and feature-rich thermal monocular designed for long-range observation in open terrain. Launched in late 2023, it combines a high-sensitivity VOx sensor, ergonomic housing, and an integrated laser rangefinder in a highly durable magnesium chassis. With a base magnification of 3.5x and up to 28x digital zoom, the CH35L is perfect for users needing clarity, accuracy, and comfort in a single handheld unit.

In stock

We match the prices!

Did you find the product cheaper elsewhere? Show us proof and we will match the price. More: [email protected]

SKU HM-CH35L
Description

General properties

Manufacturer Hikmicro
Thermal Monocular Series Hikmicro Condor
Made in China
In production since 2023
Warranty 2 years
SKU HM-CH35L

Optical properties

Variable magnification  Yes
Magnification.  3.50 x
Minimal magnification. 3.50 x
Maximum magnification. 28.00 x
Diopter range  -5/+3
Lens diameter.  35.00 mm
Field of view...  131.00 m/1000m
Field of view (deg.).  7.50 °
Min. field of view... 97.00 m/1000m
Max. field of view... 131.00 m/1000m
Eye relief.  15.00 mm
Close focus.  3.50 m
Lens aperture F 1.0
Range of detection. 1,800.00 m
Optical zoom No

Thermal sensor properties

Thermal sensor type VOx Uncooled
Thermal sensor resolution 384x288
Thermal sensor pixel count. 0.11 MP
Pixel pitch. 12.00 μm
NETD. 20.00 mK
Refresh Rate. 50.00 Hz
Temperature sensitivity. 20.00 mK

Display properties

Display type  OLED
Screen Resolution  1024×768
Display pixel count. 0.79 MP

Recording properties

Image Capture Yes
Video recording Yes
Video output Yes

Physical properties

Length. 184.90 mm
Width. 53.00 mm
Height. 87.80 mm
Weight. 400.00 g
Material Magnesium
Working temperature range -30°C to +55°C
Power Supply Li-ion
Battery life. 4.50 h
Color Black

Special features

Waterproof  Yes
Fogproof  Yes
Built-in rangefinder No
Image stabilizer  No
More Information
MANUFACTURER Hikmicro
