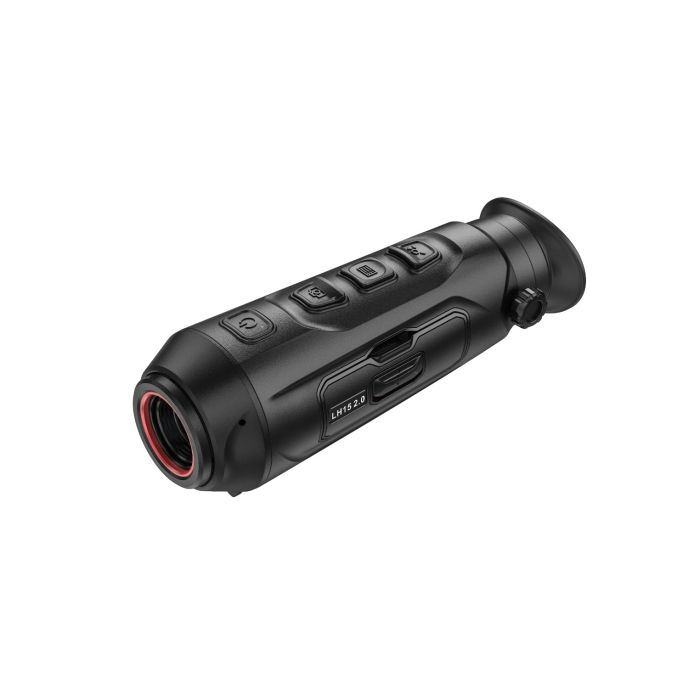

Hikmicro Lynx LH15 2.0

The HikMicro Lynx 2.0 LH15 is the most compact and wide-view model in the new Lynx 2.0 series, delivering professional-grade thermal imaging in an ultra-portable design. Featuring a high-sensitivity thermal sensor, fast startup, and intuitive controls, the LH15 2.0 is the ideal entry-level thermal monocular for scanning wide terrain, detecting heat signatures quickly, and operating in any light condition.

In stock

We match the prices!

Did you find the product cheaper elsewhere? Show us proof and we will match the price. More: [email protected]

SKU HM-LH15-2.0
Description

General properties

Manufacturer Hikmicro
Thermal Monocular Series Hikmicro Lynx 2.0
Made in China
In production since 2024
Warranty 3 years
SKU HM-LH15-2.0

Optical properties

Variable magnification  Yes
Magnification.  1.40 x
Minimal magnification. 1.40 x
Maximum magnification. 11.20 x
Diopter range  -5/+3 dpt
Lens diameter.  15.00 mm
Field of view...  308.00 m/1000m
Field of view (deg.).  17.50 °
Max. field of view... 308.00 m/1000m
Eye relief.  20.00 mm
Close focus.  1.50 m
Lens aperture F 1.0
Range of detection. 750.00 m
Optical zoom No

Thermal sensor properties

Thermal sensor type VOx Uncooled
Thermal sensor resolution 384x288
Thermal sensor pixel count. 0.11 MP
Pixel pitch. 12.00 μm
NETD. 20.00 mK
Refresh Rate. 50.00 Hz
Calibration mode  Automatic, Manual
Temperature sensitivity. 20.00 mK

Display properties

Display type  OLED
Screen Resolution  1024×768
Display pixel count. 0.79 MP

Recording properties

Image Capture Yes
Video recording Yes
Video output Yes

Physical properties

Length. 164.00 mm
Width. 56.00 mm
Height. 60.80 mm
Weight. 272.00 g
Working temperature range -30°C to +55°C
Power Supply Rechargeable Battery
Battery life. 6.50 h
Focusing system  -
Color Black

Special features

Waterproof  Yes
Fogproof  Yes
Special features Fogproof, Shockproof, Waterproof
Connectivity Wifi
Tripod adaptable Yes
Built-in rangefinder No
Image stabilizer  No
More Information
MANUFACTURER Hikmicro
