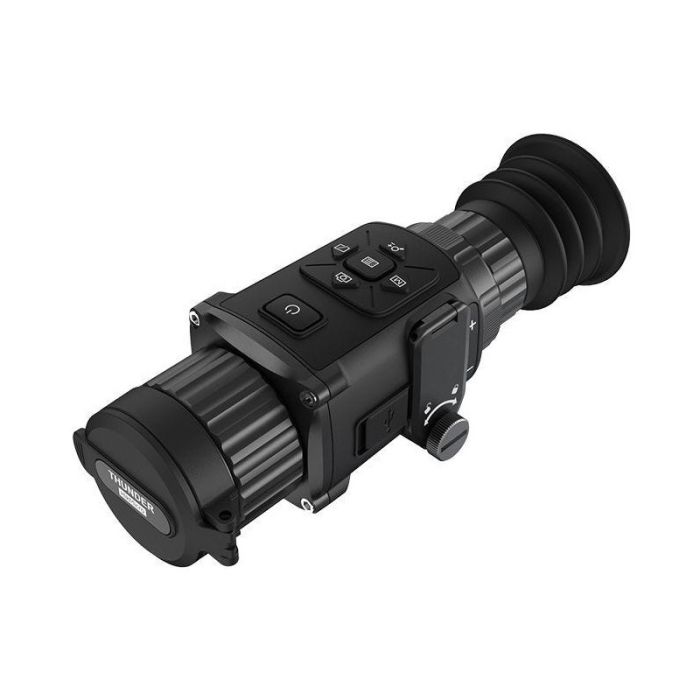

HikMicro Thunder Pro TE19 riflescope

Specification

Thermal Module

Image Sensor VOx Uncooled Focal Plane Arrays
Max. Resolution 256 × 192
Frame Rate 25 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD < 35 mK (@ 25°C),F# = 1.0
Lens (Focal Length) 19 mm
Detection Range 900 m
IFOV 0.63 mrad
Field of View 9.24° × 7.08°
Min. Focusing Distance 1 m
Aperture F1.0
Magnification 2.5 to 20 (x8 zoom)
Image Display
Display 1024 × 768, 0.39 inch, OLED
Palettes Black hot, white hot, red hot, fusion
Exit Pupil 6 mm
Eye Relief 45 mm
Diopter (Range) -5D to +3D

System

Record Video On-board video recording
Capture Snapshot Yes
Standby Mode Yes
Uniformity Correction Auto, Manual, External Correction
Storage Built-in EMMC (16 GB)
PIP Yes
DPC Yes
Hotspot Yes
Digital Zoom 1X, 2X, 4X, 8X
Hot Track Yes
Reticle Yes
Distance Measurement Yes
Power Supply
Battery Type Replaceable
Applicable type: CR123A, RCR123A
Battery Operating Time 5 h
Battery Capacity Display Yes
Anti-reverse Battery Connection Yes
Overvoltage Protection Yes
Type-C Power Supply Yes

General

Work Temperature/Humidity -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Vibration & Shock 750 g/1 ms
Dimension 187.2 mm × 62.5 mm × 59.2 mm
Weight 415 g without eyepiece and batteries
Port Type-C
