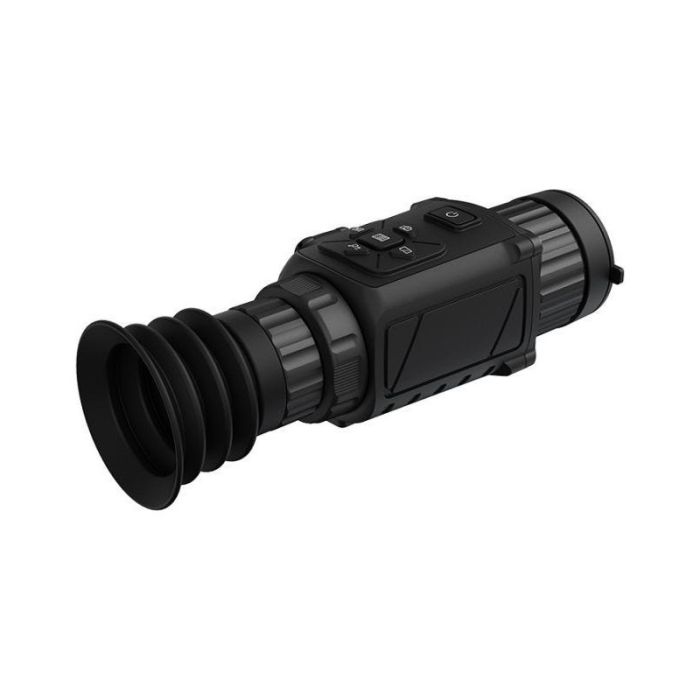

Hikmicro Thunder TH25 riflescope

Specification

Thermal Module

Image Sensor Uncooled Focal Plane Arrays
Pixel Interval 17 μm
Max. Resolution 384 × 288
Response Waveband 8 μm to 14 μm
NETD less than 35 mK (25 °C,F#=1.0)
Lens (Focal Length) 25 mm
IFOV 0.68 mrad
Field of View 14.9° × 11.2°
F Number F1.0
Frame Rate 50 Hz
Magnification 1.5X
Image Display
Monitor 0.39-inch, OLED, 1024 × 768
Palettes Black hot, white hot, red hot, fusion
Exit Pupil 6 mm
Eye Relief 45 mm
Observation Distance Max. 882 m
Contrast Adjustment Yes
Brightness Adjustment Yes

System

Digital Zoom 1X, 2X, 4X, 8X
Cursor Yes
Hotspot Yes
Distance Measurement Yes
Scene Mode Jungle, Recognition
Standby mode Yes
Video Recording Yes
Picture Snapshot Yes
PIP Yes
DPC Yes
Uniformity Correction Auto, Manual, External Correction
Storage Built-in EMMC (16 GB)
Power Supply
Battery Replaceable
Applicable type: CR123A, RCR123A
Battery Operating Time 4.5 h (25 °C, with hotspot off)
4 h (25 °C, with hotspot on)
Anti-reverse battery connection Yes
Overvoltage Protection Yes
Battery Capacity Display Yes
Type-C Power Supply 5 VDC, 2 A
Supports external power supply

General

Port Type-C
Working Temperature -20 °C to 55 °C (-4 °F to 131°F)
Protection Level IPX7
Vibration & Shock 750 g/1 ms
Dimension (L × W × H) 187.2 mm × 62.5 mm × 59.2 mm (7.37" × 2.46" × 2.33")
Weight 0.39 kg (0.86 lb) without eyepiece and batteries
Available Model
