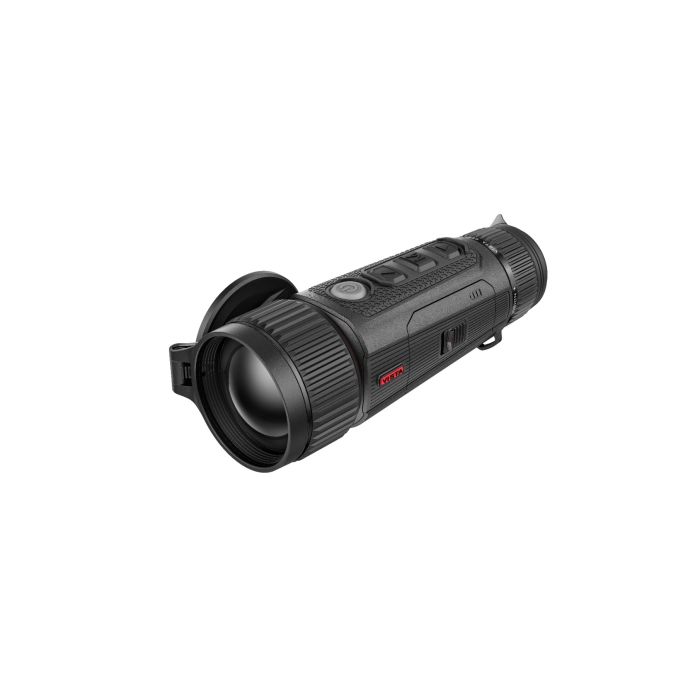

Nocpix Vista H50 by Infi thermal monocular
In stock
We match the prices!
Did you find the product cheaper elsewhere? Show us proof and we will match the price. More: [email protected]
Description
Why Choose VISTA?
The VISTA Series redefines what a thermal monocular can deliver: immersive viewing, professional-grade sensors, and rugged design built for the outdoors. With features such as the Vision+ System (2560×2560 AMOLED display), ultra-sensitive thermal detector (NETD ≤ 15 mK), F0.9 high-aperture lens and, for some models, integrated laser rangefinder (LRF) up to 1200 m, this series is engineered for hunters, wildlife observers and field professionals alike.
nocpix.au+3Nocpix+3nocpix.uk+3
Key Features You’ll Appreciate
-
Vision+ System: 1.03″ round AMOLED display at 2560×2560 resolution for immersive, edge-to-edge clarity. nocpix.uk+1
-
Superior Sensor: Self-developed thermal sensor (12 μm pixel size) with NETD ≤ 15 mK ensures fine detail in challenging conditions. Nocpix+1
-
60 Hz Frame Rate: Smooth image capture of moving targets and scenes. nocpix.au+1
-
F0.9 Lens: Up to 20 % more light intake compared to typical F1.0, enhancing clarity in low-light situations. nocpix.au
-
Integrated LRF (on “R” models): Enables precise distance measuring up to 1200 m, useful for long-range observations. nocpix.uk+1
-
User-Friendly Design: Silent buttons, rotatable eye-mask to prevent light leaks, wrapped TPU faux-leather grip for comfort in extended use. Nocpix+1
-
Flexible Power: Replaceable IBP-7 battery packs (≈4400 mAh) or direct charging, ensuring long operating times in the field. nocpix.uk
-
Robust Build: IP67-rated for dust and water resistance. DigOptics+1
Technical Specifications Snapshot
| Model | Sensor | Lens | Magnification | Detection Range* | LRF | Weight |
|---|---|---|---|---|---|---|
| H35 / H35R | 640×512 @12μm | 35 mm F0.9 | 3× – 28× | ~1 800 m | H35R: 1200 m | ~600 g |
| H50 / H50R | 640×512 @12μm | 50 mm F0.9 | 4× – 40× | ~2 600 m | H50R: 1200 m | ~640-650 g |
| S50R | 1280×1024 @12μm | 50 mm F0.9 | 2× – 40× | ~2 600 m | 1200 m | ~690 g |
*Detection range based on manufacturer’s or review estimates in ideal conditions.
General properties
| Manufacturer | Nocpix |
|---|---|
| Thermal Monocular Series | Nocpix Vista |
| Made in | China |
| In production since | 2024 |
| Warranty | 3 years |
| SKU | NPXVH50 |
Optical properties
| Variable magnification | Yes |
|---|---|
| Magnification. | 40.00 x |
| Minimal magnification. | 4.00 x |
| Maximum magnification. | 40.00 x |
| Diopter range | -4/+6 dpt |
| Lens diameter. | 50.00 mm |
| Field of view... | 153.40 m/1000m |
| Field of view (deg.). | 8.80 ° |
| Max. field of view... | 153.40 m/1000m |
| Eye relief. | 25.00 mm |
| Lens aperture | F 0.9 |
| Range of detection. | 2,600.00 m |
| Optical zoom | No |
Thermal sensor properties
| Thermal sensor type | VOx Uncooled |
|---|---|
| Thermal sensor resolution | 640x512 |
| Thermal sensor pixel count. | 0.33 MP |
| Pixel pitch. | 12.00 μm |
| NETD. | 15.00 mK |
| Refresh Rate. | 60.00 Hz |
| Calibration mode | Shutter |
| Temperature sensitivity. | 15.00 mK |
Display properties
| Display type | AMOLED |
|---|---|
| Screen Resolution | 2560x2560 |
| Display pixel count. | 6.60 MP |
Recording properties
| Image Capture | Yes |
|---|---|
| Video recording | Yes |
| Video output | Yes |
Physical properties
| Length. | 190.00 mm |
|---|---|
| Width. | 67.00 mm |
| Height. | 79.00 mm |
| Weight. | 630.00 g |
| Working temperature range | -20°C to +50°C |
| Power Supply | Rechargeable Battery |
| Battery life. | 5.50 h |
| Focusing system | Central |
| Diopter setting position | Central |
| Color | Black |
Special features
| Waterproof | Yes |
|---|---|
| Fogproof | Yes |
| Connectivity | Wifi |
| Tripod adaptable | No |
| Compass | No |
| Built-in rangefinder | No |
| Image stabilizer | No |
| Automatic Brightness Control | No |
More Information
| MANUFACTURER | Nocpix |
|---|---|
| Lens Diameter | 50 mm |
| Thermal Sensor resolution | 640x512 12μm |
| Ločljivost zaslona | 2560x2560 |
| Minimal magnification | 3X |
| Maximum magnification | 28X |
| Frame rate | 60 Hz |
| Smart rangefinder | No |
| NETD | 15 mK |
| Range | 1800-2500 m |
| Weight | 0.640000 |
| Country of Manufacture | China |
